When embarking on a construction or renovation project, there's a crucial element that often goes unnoticed but plays a significant role in ensuring the structural integrity of your building: lintel sizing. A lintel, also known as a beam or header, is a horizontal support that spans the top of an opening, such as a door or window, to distribute the weight of the structure above it. Determining the right size lintel is essential to prevent sagging, cracking, or even collapse. We'll break down the steps involved in determining the appropriate lintel sizing for various types of openings.
The first step in determining the right lintel size is to identify the type of opening you're dealing with. Are you installing a lintel above a window, door, or another type of opening? Additionally, consider the load that the lintel will be supporting, including the weight of the wall, the roof, and any additional loads like snow or wind. This information is essential for accurate lintel sizing.
Once you have the necessary load information, it's time to calculate the load on the lintel. This involves understanding the various forces acting on the lintel, such as dead load (permanent weight of the structure), live load (temporary or moving loads), and environmental factors like wind and
seismic loads. These calculations will help you determine the maximum load the lintel must support.
Lintels are available in various materials, including steel, concrete, and wood. Each material has its own load-bearing capabilities and characteristics. Consider factors like the material's strength, durability, and resistance to corrosion. The chosen material will play a significant role in determining the lintel size.
Lintel sizing is often determined by referring to structural design tables and charts provided by engineering codes and standards. These resources factor in the type of opening, the material of the lintel, and the calculated load. These tables offer recommended lintel sizes based on your specific requirements, ensuring a safe and stable structure.
For complex or critical projects, it's advisable to consult a qualified structural engineer. An engineer can provide precise calculations based on the specific details of your construction. They will take into account all relevant variables and provide recommendations that guarantee the lintel's ability to handle the load safely.
Lintels are structural elements that provide support for openings such as doors and windows in buildings. They are typically placed horizontally above the openings to distribute the load from above to the adjacent vertical supports, such as walls or columns. Lintels come in various types and materials to accommodate different architectural and structural requirements.
The types of lintels along with examples of sizing:
Reinforced Concrete Lintels
Reinforced concrete lintels are commonly used due to their strength and versatility. They are often designed as rectangular or T-shaped sections with steel reinforcement to provide added strength. The sizing of a reinforced concrete lintel involves calculating the required depth and width based on the span and load it needs to support.
Example Sizing:
Let's say you have a door opening with a span of 6 feet (1.8 meters) and a uniformly distributed load (UDL) of 500 pounds per linear foot (PLF). You can calculate the required depth and width of the lintel using structural engineering principles and software. A possible result might be a reinforced concrete lintel with dimensions of 8 inches (depth) x 12 inches (width).

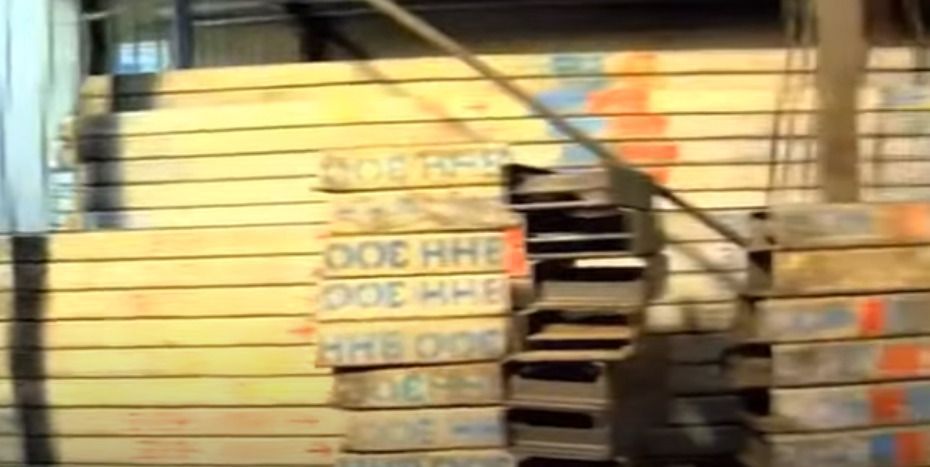

Steel Lintels
Steel lintels are popular for their high strength-to-weight ratio and ease of installation. They can be I-beams, channels, or angles. The sizing of steel lintels involves selecting an appropriate section based on the span, load, and deflection criteria.
Example Sizing:
For a window opening with a span of 4 feet (1.2 meters) and a UDL of 800 PLF, a steel lintel might be chosen with a W8x18 wide-flange shape. This means the lintel has a nominal depth of 8 inches and weighs 18 pounds per linear foot.
Timber Lintels
Timber lintels are used in traditional and residential construction. The sizing of timber lintels depends on the species of wood, the span, and the load.
Example Sizing:
Suppose you have a small window opening with a span of 3 feet (0.9 meters) and a UDL of 300 PLF. A suitable timber lintel might be a piece of pressure-treated Douglas fir measuring 6 inches (height) x 4 inches (width).
Brick Lintels
Brick lintels are often used in masonry construction. They are created by placing several layers of bricks or blocks over the opening to distribute the load. The number of layers and the size of the bricks determine the lintel's strength.
Example Sizing:
Consider a brick lintel for a small door opening with a span of 5 feet (1.5 meters). A lintel might be constructed using three rows of bricks (9-inch thickness) laid flat, spanning the opening and supported by the surrounding masonry.
Determining the right lintel size is a crucial step in any construction project that involves openings like windows and doors. By following a systematic approach that involves identifying the opening type, calculating the load, selecting the appropriate material, consulting design references, and considering professional lintel installer when needed, you can confidently ensure the structural integrity and safety of your construction. Remember, taking the time to get the lintel sizing right translates to a solid and dependable foundation for your project, providing you with peace of mind and a durable result that will stand the test of time.
